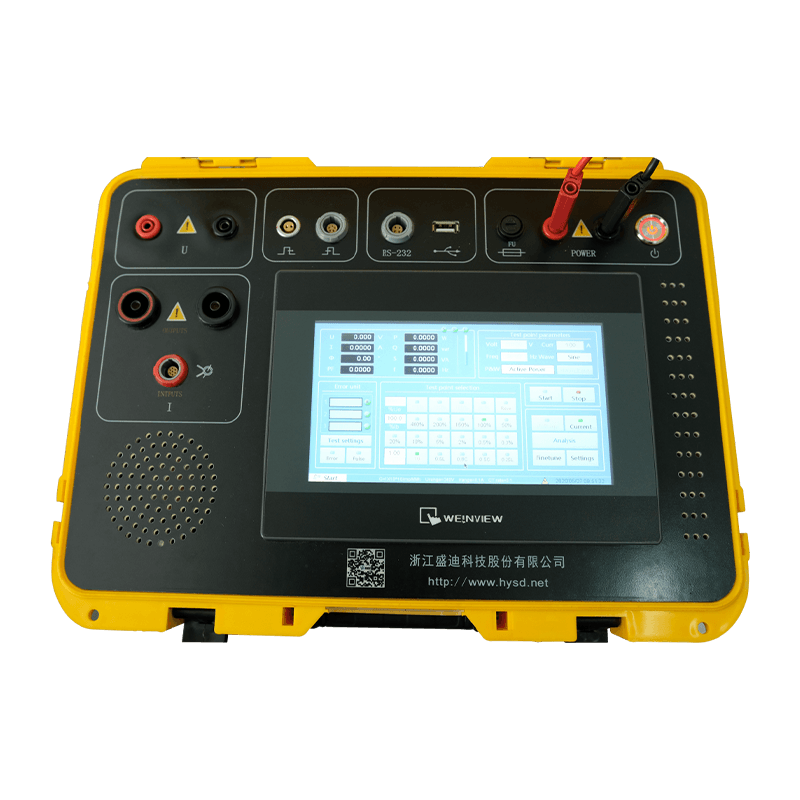

    HS-3163 portable single phase on-site calibrator

    HS-3163 portable single phase on-site calibrator is a high-performance calibrating instrument. It is designed with international new digital technology, consists of integrated wide range voltage &current source and a reference standard meter with accuracy of 0.05%.

    share:

    Phone : 0086-573-86161698

    contact us

    Description

    Item/Model

    HS-3163

    HS-3163I

    HS-3163P

    Voltage

    220V

    Voltage accuracy

    0.05%

    Current

    terminals

    0.1~5A wide ?range

    clamp

    20A、100A

    5A terminal

    active energy/power

    ±0.05% ±0.1%

    reactive energy/power

    ±0.2%

    Clamp

    active energy/power

    ±0.2% ±0.5%

    reactive/power

    ±0.2% ±0.5%

    Frequency

    45~55Hz

    Accuracy

    ±0.01Hz

    Phase angle

    -180°~ +180°

    Accuracy

    ±0.1°

    Harmonic accuracy

    ±0.1%

    Harmonic

    2~41

    Stable time

    <3 minutes

    Voltage source

    output range

    -

    -

    30V ~ 300 V

    capacity

    -

    -

    20 VA

    distortion

    -

    -

    ≤ 0.5%

    stability

    -

    -

    ≤ 0.05%(3 minutes)

    frequency

    -

    -

    45~65Hz

    Current source

    output range

    -

    5 mA~ 60 A

    capacity

    -

    50 VA(when it is 60A)

    distortion

    -

    ≤ 1%

    stability

    -

    ≤ 0.05% (2 minutes)

    phase angle

    -

    0°~359.99°

    frequency

    -

    power frequency

    45~65Hz

    Communication port

    RS232、Bluetooth

    Aux.power

    85~264VAC/47~63 Hz

    Power consumption

    50VA

    150VA

    200 VA

    Case & size

    plastic case, 355×272×166mm(L*W*H)

    Weight

    about 3kg(not include spare parts)

    about 6kg(not include spare parts)

    about 7kg(not include spare parts)

    working Temp.

    -10℃ ... +50℃

    Main functions:
    Test energy meter under different current load with external supply power or internal voltage & current source;
    Test current harmonic influence or other influence;
    Display vectorgraph ,harmonic analysis and waveform, analyze the condition of state grid output;
    Test voltage, current: directly or through current clamps;
    Measure active, reactive and apparent power;
    Measure phase angle, PF and frequency.
