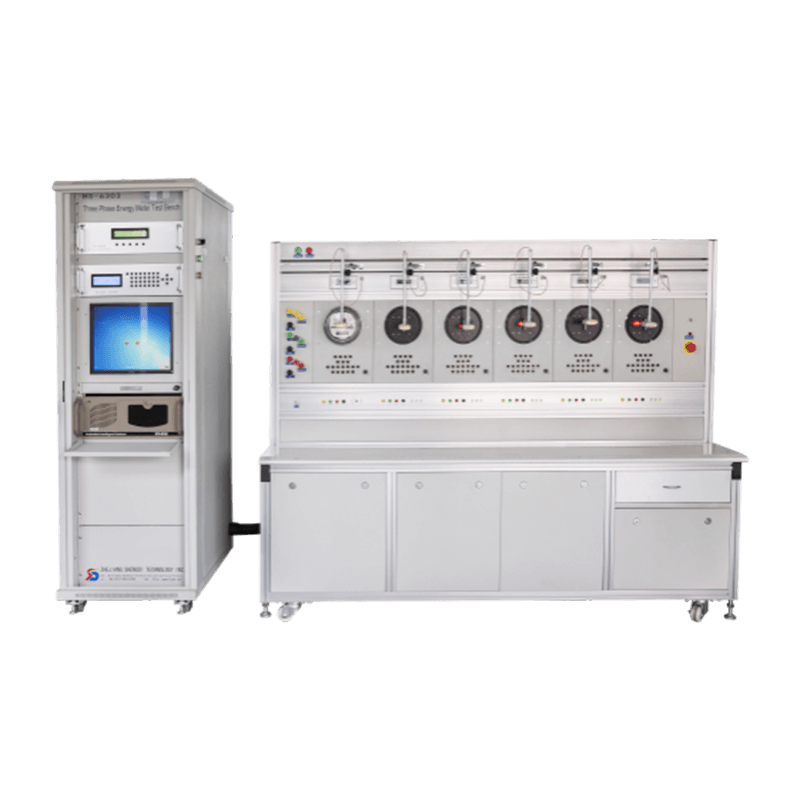

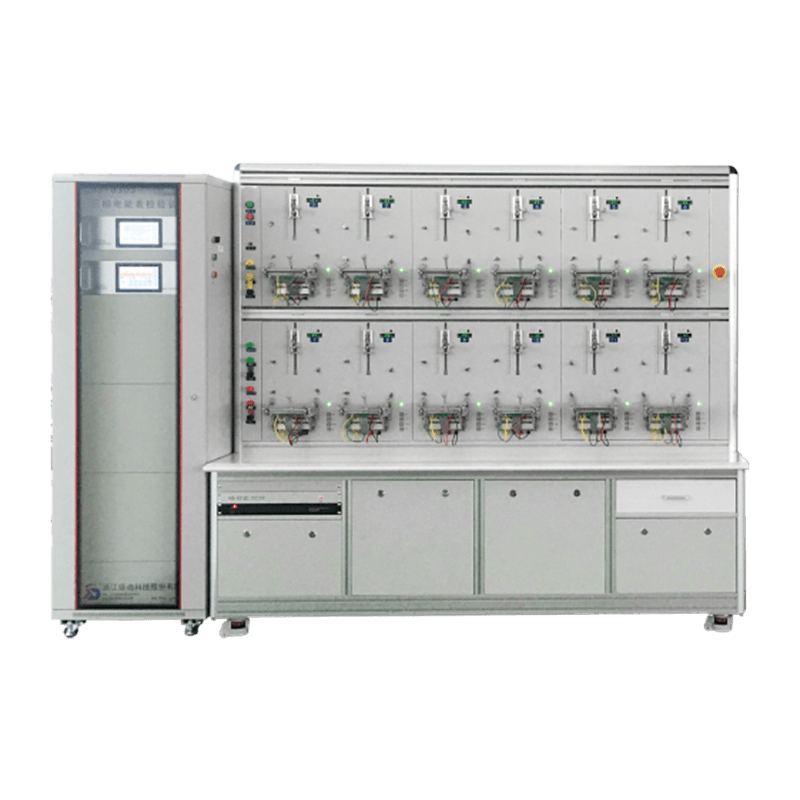

    HS-6303 three phase energy meter test bench

    HS-6303 three phase energy meter test bench adopts SPWM digital amplify technology, equips with high accuracy digital reference standard meter, multi-path voltage transformer, to realize multi-positions error testing.

    share:

    Phone : 0086-573-86161698

    contact us

    Description

    Items

    0.02 class

    0.05 class

    0.1 class

    Accuracy of reference standard meter

    HS-5300H /0.02

    HS-5300/0.05

    HS-5300/ 0.1

    Output range

    voltage:3×30~300V

    current:3×0.3m~120A

    voltage:3×30~300V

    current:3×0.3mA~120A(200A optional)

    Phase angle

    0~360°,resolution:0.01°

    Frequency

    45~65Hz ,resolution:0.01Hz

    Waveform distortion

    voltage、current<0.5%( liner load)

    power stability

    ≤0.02%/120s

    ≤0.05%/120s

    Output capacity/each phase

    voltage:300VA(6positions)

    current:250VA(100A)

    Voltage:300VA(16positions) current:900VA(100A) ?Max load can rise to 2000VA for current?with the increase of the position number, voltage 1200VA

    Load characteristic

    resistive, inductive and capacitive(less than 1uF/ each position, the Max. is less than 48 uF)

    Starting current output

    Min.0.3mA, accuracy:2%, starting power: accuracy 5%

    Communication test

    RS485/232/infrared/carrier wave, support DL/T645-1997/2007、698.45、IEC1107

    Environment condition

    Temp.:20℃±5℃;Humidity:<85% R.H.

    Power supply

    AC220±10%,50/60Hz,AC120/240V(optional);
    Max. power consumption: 3000VA(24 positions)

    Function Parameters:

    Items

    HS-6303

    HS-6303B

    HS-6303C

    HS-6303E

    HS-6303F

    HS-6303G

    HS-6303H

    Basic functions

    basic error

    creeping test

    starting test

    standard deviation

    Constant test

    dial error

    influence test

    Multi-functions test

    ?

    daily timing error☆

    ?

    ?

    ?

    period switching error

    ?

    ?

    ?

    demand period error

    ?

    ?

    ?

    demand display error

    ?

    ?

    ?

    energy display error

    ?

    ?

    ?

    register checking

    ?

    ?

    ?

    GPS timing☆

    ?

    ?

    ?

    communication test☆

    ?

    ?

    ?

    state grid test

    consistency test

    ?

    ?

    ?

    Com. protocol consistency checking

    ?

    ?

    ?

    event record

    ?

    ?

    ?

    charge test☆

    ?

    ?

    ?

    power consumption test☆

    ?

    ?

    ?

    Remark: ●─standard; 〇─optional

    ☆?is special function

    Dimensions(unit:?mm,?position recommendation)

    Integration

    Fission

    position

    ?rack

    size: L×W×H(mm)

    position

    rack

    size: L×W×H(mm)

    6

    1

    2000×800×1600

    12

    1

    2000×700×1920

    Horizontal test bench can be provided

    16

    1

    2200×700×1920

    12

    1

    2000×800×1920

    24

    2

    2000×700×1920

    16

    1

    2200×800×1920

    32

    2

    2200×700×1920

    24

    2

    2000×750×1920

    cabinet

    600×800×1920(mm)
