    • HS-6307 Electricity Information Collection Terminal Test Device
    • HS-6307 Electricity Information Collection Terminal Test Device

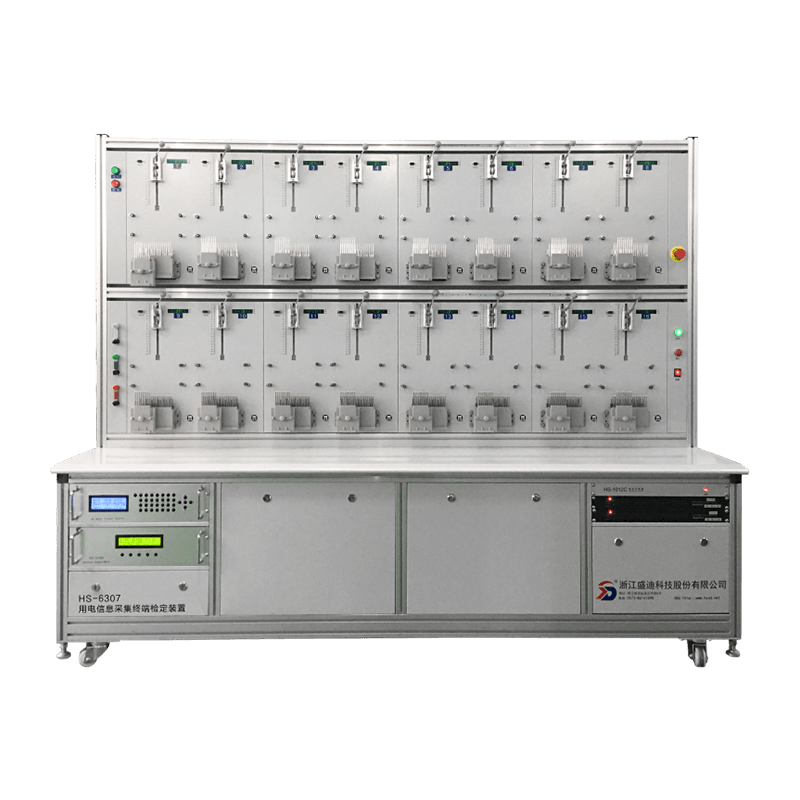

    HS-6307 Electricity Information Collection Terminal Test Device

    The HS-6307 power consumption information collection terminal verification device is a high-performance equipment designed based on the international new generation of digital technology. The device is mainly composed of high-performance signal source, SPWM power amplifier, digital standard electric energy meter, carrier communication system, and high-precision multi-function detection unit. The verification provides a complete solution. The device has the characteristics of high degree of automation, high detection efficiency, high accuracy, complete functions, stability and reliability, and has a high performance-to-price ratio, which represents the current high technical level of electric energy detection in the industry.

    share:

    Phone : 0086-573-86161698

    contact us

    Description

    Index Item

    0.05 level

    Standard configuration level

    HS-5300 Class 0.05

    Output range

    Voltage: 3×30～300V Current: 3×10mA～30A

    Output phase

    0～360°, resolution: 0.01°

    Output frequency

    45～65Hz, resolution: 0.01Hz

    Waveform distortion

    Voltage, current <0.5% ( relative to linear load)

    Power stability

    ＜0.05%/120 seconds

    Output capacity

    Voltage: 240VA; Current: 500VA

    Load characteristics

    Resistive, inductive, and capacitive

    Start current output

    1mA minimum, accuracy: 5%, starting power: accuracy 5%

    Communication test

    GPRS/RS232/230 radio/Ethernet, supporting the State Grid and Southern China Grid protocols.

    Number of school tables

    16?

    Dimensions (mm)

    Length × width × height : 24 00 × 750 × 1 92 0

    Environmental conditions

    Temperature: 20℃±5℃; Humidity: <85% RH

    Device input power

    AC220±10%, 50/60Hz, AC120/240V, ordering requires instructions;
    maximum power consumption: 1500VA
    Functional advantages:
    Six independently adjustable three-phase signal sources to meet various on-site simulation environments required by the test terminal.
    Support multiple forms of communication: including RS232, GPRS, CDMA, 230 radio, Ethernet, etc.
    Reliable multi-channel pulse detection and accurate error processing technology can perform error test on common transformer and special transformer terminal.
    SPWM technology Power amplifier, large capacity, high performance, low power consumption, automatic alarm protection.
    Modular design, good component versatility, easy to disassemble and maintain.
    One-key verification control management system, automatically completed according to the plan.
    Standardized cabinet, one-time stamping and forming, all aluminum alloy frame, more beautiful and firmer.
    In-depth customization according to functional requirements, more humanized and differentiated design.
    Model specification:

    Model

    Name

    Scope of application

    HS-6307

    Electricity information collection terminal verification device

    Type Ⅲ Verification of Special Transformer Acquisition Terminal

    HS-6307B

    Multifunctional verification device for collecting terminal of electricity consumption information

    Integrated device of terminal, concentrator and collector

    HS-6307C

    Verification device for electricity consumption information collector

    Suitable for the verification of type Ⅰ collector and type Ⅱ collector
    Function parameter:

    Function item

    HS-6307

    HS-6307B

    HS-6307C

    Parameter setting and query

    ●

    ●

    〇

    Data collection

    ●

    ●

    〇

    Data processing

    ●

    ●

    〇

    Remote control

    ●

    ●

    〇

    Record

    ●

    ●

    〇

    Task report

    ●

    ●

    〇

    Data collection (AC sampling)

    ●

    ●

    〇

    Carrier function test

    /

    ●

    ●

    Collector function test

    〇

    〇

    ●

    Device configuration table:

    Installation item

    HS-6307

    HS-6307B

    HS-6307C

    Standard energy meter

    ●

    ●

    〇

    Power source

    ●

    ●

    ●

    Error handling system

    ●

    ●

    〇

    Multiple pulse input

    ●

    ●

    〇

    Multifunctional verification unit

    ●

    ●

    〇

    Automatic short circuit

    〇

    〇

    〇

    Carrier communication

    〇

    〇

    〇

    Power consumption test

    〇

    〇

    〇

    Clock tester

    〇

    〇

    〇

    GPS timing

    〇

    〇

    〇

    Note: ●─Basic configuration; 〇─Optional configuration
