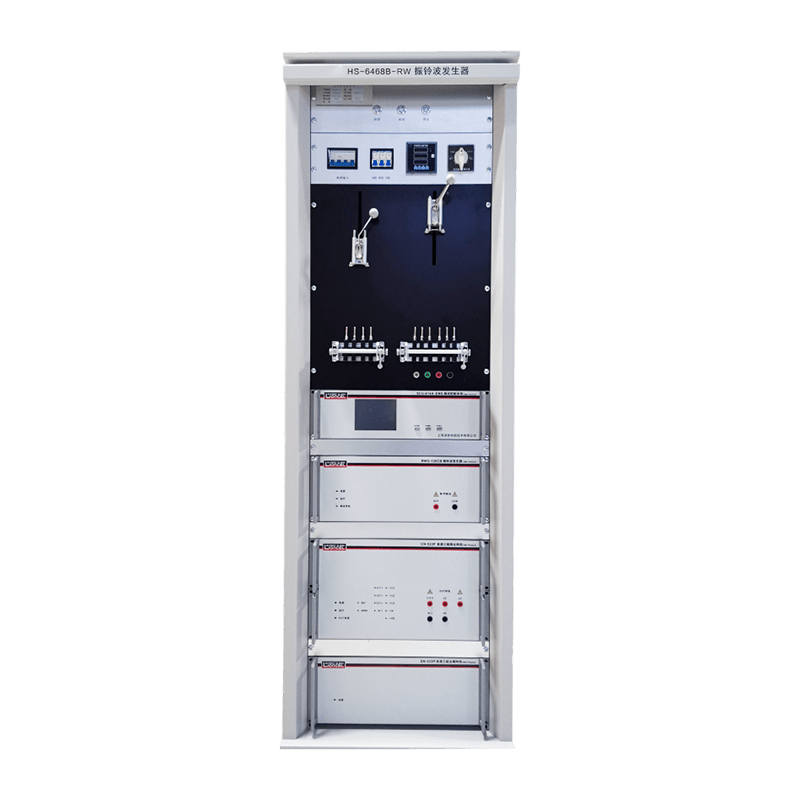

    HS-6468B-RW ring wave test bench

    The test bench is developed to test energy meters under the influence of ring wave, it comply with state grid regulation and GB/T17626.12-2013.

    It can do automatic test for single/three phase energy meters.

    It can stimulate ring waves caused by electrical network, reactance load switching, power supply failure, insulation breakdown or lightning strike induction to low voltage cable, it is with high intelligence.

    share:

    Phone : 0086-573-86161698

    contact us

    Description

    Items

    Technical Para.

    Peak open circuit voltage

    0.25~7.0kV±10%

    Voltage open circuit wave

    leading 0.5us±20%, voltage short circuit wave≤1us

    Voltage rising time(the first peak)

    0.5us(±30%)

    Current rising time(the first peak)

    ≤1us

    Oscillation frequency

    100kHz±10%

    Pulse interval

    1s~99999s

    Pulse number

    1~99999

    Output impedance

    12Ω、30Ω

    Polarity

    positive、negative positive and?negative alternative

    Trigger phase

    asynchronous/phase synchronization/external synchronization,1°step by step

    particular phase switching(0°~90°~180°~270°)

    Trigger mode

    manual/automatic/external trigger

    Voltage attenuation

    0.4<Pk2/Pk1<1.1,0.4<Pk3/Pk2<0.8,0.4<Pk4/Pk3<0.8

    Embedded single/three-phase coupling decoupling network indication

    ?

    3P5W, line voltage 450VAC/20A, DC220VDC/20A

    Communication

    RJ45、USB

    Position

    single phase 1position, three phase 1position(standard)

    Power supply

    AC220V±10%,50Hz ,(AC120V/240V?optional)

    Max.consumption:1000VA

    Dimension

    cabinet:(600×800×1920)×2
