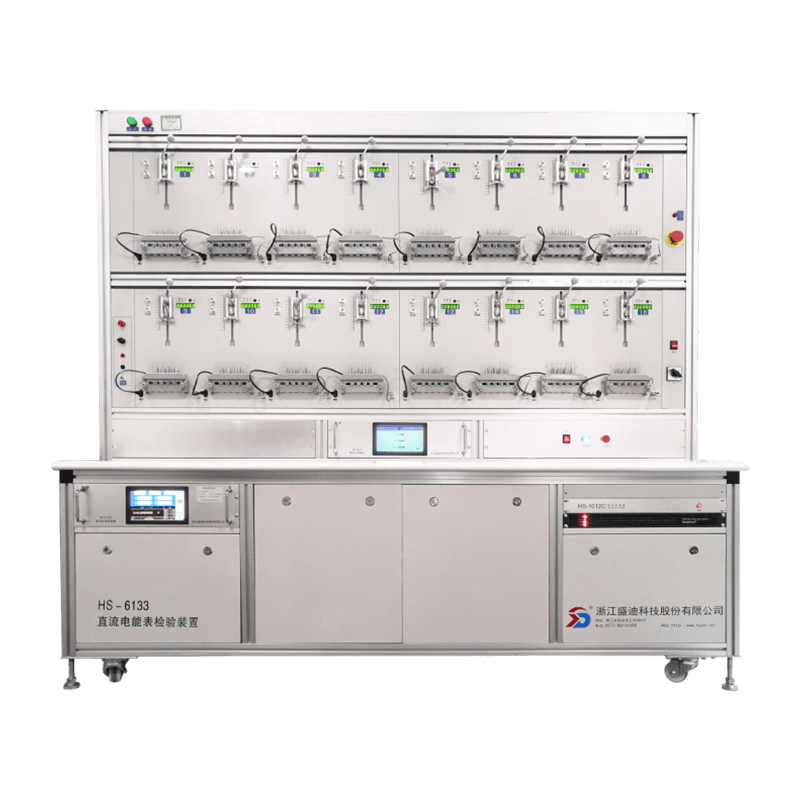

    HS-6133 DC Energy Meter Test Bench

    HS-6133 DC energy meter test bench can verify all types of DC energy meters with external and internal shunt. The bench has the characteristics of convenient use, high precision, stable index, rich function, novel interface, clear and simple operation and reliable work.

    share:

    Phone : 0086-573-86161698

    contact us

    Description

    Item

    Technical Parameter

    Bench accuracy

    0.05/0.02 class

    Reference Meter

    HS-5103E DC reference standard meter ?Accuracy:0.05/0.02 class

    ?

    ?

    ?

    Output Voltage

    Range

    Stability(%/min)

    1000V

    0.02

    500V

    0.02

    250V

    0.02

    125V

    0.02

    62.5V

    0.02

    Range:1V-1500V,0~120%,Max. output(Option1500V)

    ?

    ?

    ?

    ?

    ?

    ?

    Output Current

    ?

    Range

    Stability(%/min)

    500A

    0.4

    100A

    0.05

    50A

    0.05

    10A

    0.05

    5A

    0.05

    1A

    0.02

    100mA

    0.02

    10mA

    0.02

    1mA

    0.02

    Output Range:0.1mA~500A,0~120%

    Output current small signal(DCIU)

    10V

    0.02

    5V

    0.02

    2.5V

    0.02

    1.25V

    0.02

    0.625V

    0.02

    100mV

    0.02

    10mV

    0.02

    1mV

    0.05

    Range:1mA~10V,0~120%

    Start current output

    0.1mA (or 0.01mV) ,accuracy:1%,start-up power:accuracy 1%;

    Test function

    Basic error, creep test, start test, constant test, daily test

    Communication Test

    RS485 Communication test,According to the protocol for communication of the measured meters.

    Power supply

    3 X 220V/380V (Y)±10%,50Hz;

    Standard:

    GBT 33708-2017?Static meter for direct current energy

    JJG 842-1993 Verification Regulation of DC Kilowatt-hour Meter Q/GDW 1825-2013 Technical Specification for direct current electricity meters

    JBT 9288-1999 External shunt

    Function advantage:

    Can test direct access DC energy meter and external shunt access DC energy meter;
    Output DC voltage, current with more channel, stability, covering the commonly used DC energy meter range;
    Equipped HS-5103E Multi-function DC reference Standard Meter,can be used separately, independent inspection;

    Dimensions(unit:mm)

    Integration

    Position

    Number of rack

    Dimension:L*W*H(mm)

    Fission

    Position

    Number of rack

    Dimension:L*W*H(mm)

    6

    ?

    1600*750*1600

    6

    ?

    1600*750*1600

    12

    ?

    1600*750*1920

    16

    ?

    ??2000*750*1920 ?

    16

    ?

    2000*750*1920

    Cabinet

    600*800*1800
