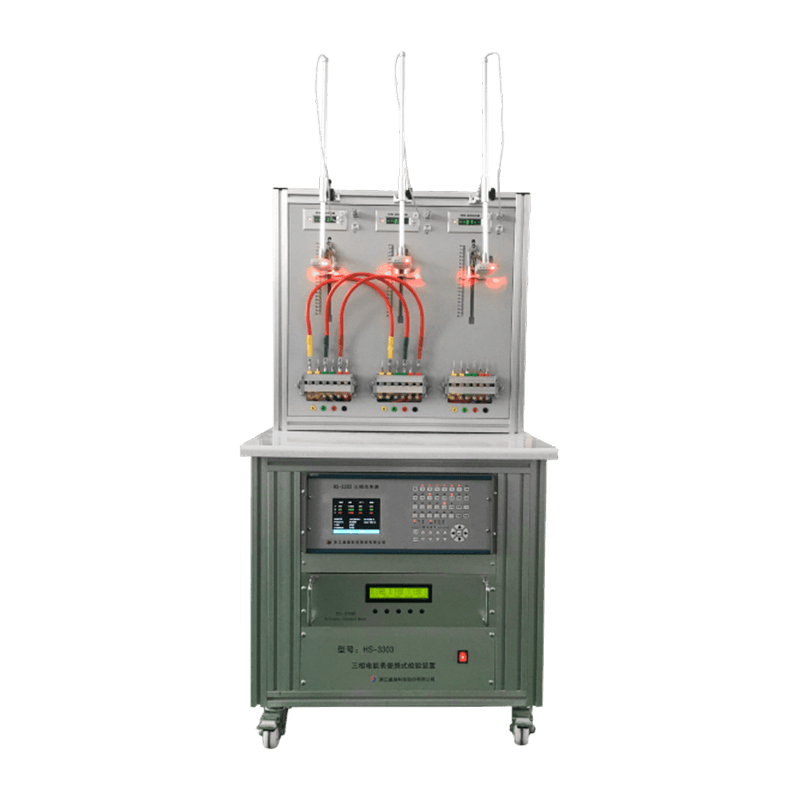

    HS-3303 series products: three phase energy meter test equipment

    HS-3303 series products are small sized, light weight three phase equipments. They adopt SPWM amplify technology, equip with high accuracy digital reference standard meter,MSPT etc. to realize multi-positions high accuracy energy error test.

    share:

    Phone : 0086-573-86161698

    contact us

    Description

    Items

    0.05 class

    0.1 class

    Reference standard meter

    HS-5300 0.05 class

    TC-3000D ?0.1class(embedded)

    Output range

    voltage(each phase):20~300V(40-600Voptional), current(each phase): 1mA~120A ??

    Phase angle

    0~360°,resolution:0.01°(each phase can be adjusted)

    Frequency

    45~65Hz ,resolution: 0.01Hz

    Distortion

    voltage、current<0.5%(liner load)

    Power stability

    <0.05%/120s

    Capacity

    voltage(each phase):50VA ???current(each phase):100VA(100A)

    Load characteristic

    resistive, inductive and capacitive(less than 1uF/position)

    starting current output

    Min.1mA, accuracy:5%,starting power: accuracy5%

    Communication test

    RS485/232/infrared/carrier wave, support DL/T645-1997/2007、698.45、IEC1107

    Positions

    1~3

    Working condition

    Temp.:20℃±5℃; humidity:<85% R.H.

    Power supply

    AC220±10%,50/60Hz,AC120V(optional); Max. consumption:500VA

    Models:

    Models

    Name

    Application

    Positions

    Size:L×W×H

    HS-3303

    three phase?energy meter test equipment

    commissioning、maintenance、R&D

    3

    485×500×200

    HS-3303B

    three phase?energy meter test equipment

    R&D、calibration

    3

    725×600×1400
