HS-9603A anti-DC bias magnetic low-voltage current transformer inspection device-Zhejiang Shengdi Technology Inc.

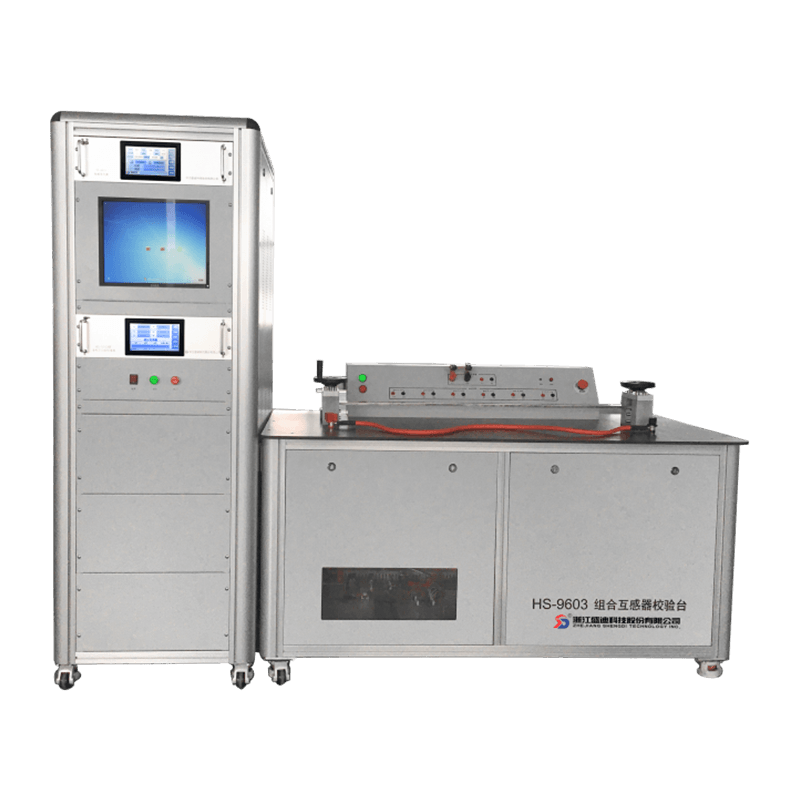

HS-9603A anti-DC bias magnetic low-voltage current transformer inspection device

The HS-9603A is designed based on the requirements of the National Grid Standard "Q/GDW 11945-2018 Anti-DC Bias Current Transformer Technical Specification". This device can test the anti-DC low-voltage current transformers from level 0.1 to level 10. It is suitable for the development and production of DC-resistant low-voltage transformer products, and can also be used as a low-voltage current transformer for the measurement department.

Phone : 0086-573-86161698

Description

Item/Model		HS-9603A
Device accuracy level		0.02 level
Device standard table configuration		HS-5100BF AC and DC current transformer comparator, accuracy level: 0.02
communicate with	Current	1mA-2000A ?
	Distortion	≤1%;
	stability	＜0.05%;
	harmonic	Harmonic order: 2~41 times, up to 10 kinds of harmonics can be superimposed; Harmonic content: less than 40% (relative to the fundamental wave) Harmonic phase: 0°~359.99°
		Harmonic angle accuracy is better than 1°
Load box	Rated current	1A/5A
	Rated Capacity	1A: ?1VA、2.5VA、5VA
		5A: 2.5VA、3.5VA、5VA、10VA
	Power factor	0.8L/1.0
	Accuracy	Level 3
Device input power		AC220V±10%, 50Hz; Maximum power consumption: 2500VA
Number of device inspection tables		6
Dimensions		Hanging watch frame: 1340×860×1000mm Cabinet body: 600×800×1920mm

Item/Model		HS-5100BF
level of accuracy		0.02 level
? ? Measuring range	Rated current	0.1mA-100A
	Secondary current	1A/5A
	Comparison	0.001%～99.99%
	Angle difference	0.001'～999.9'
measurement accuracy	Current	0.02%
	Comparison	0.02%
	Angle difference	0.6'
Input power		AC220V±10%, 50Hz; Maximum power consumption: 70VA
Dimensions		485×400×135mm

Main Feature:
1. The basic error test of anti-DC current transformer under power frequency;
2. Error test of AC power frequency superimposed DC current of anti-DC current transformer;
3. Anti-harmonic impact test of DC current transformer;
4. It can directly display the angular difference and ratio difference of the measured transformer;
